Propulsion System
Twin engines:
Cummins 480 HP × 2
Generator: 15 kW, AC 230 V
Stable, powerful propulsion
Suitable for high-speed and long-range cruising
66 Ft Luxury Yacht
The 66 Ft Luxury Yacht pairs a distinctive navy-and-white exterior with a rounded, contemporary profile. Its spacious, refined interior supports private cruising, business reception, parties and team events with a stable and comfortable onboard experience.

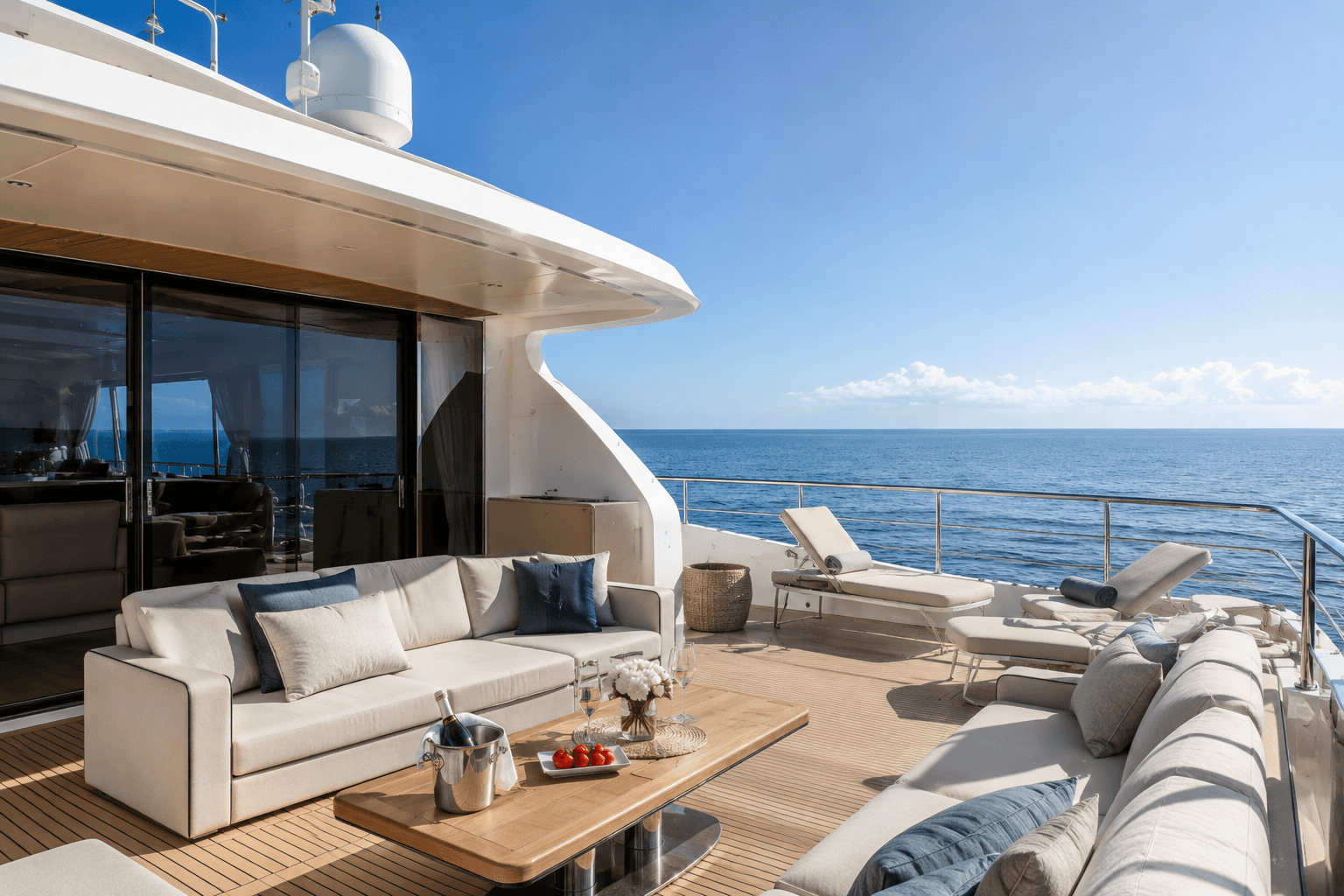

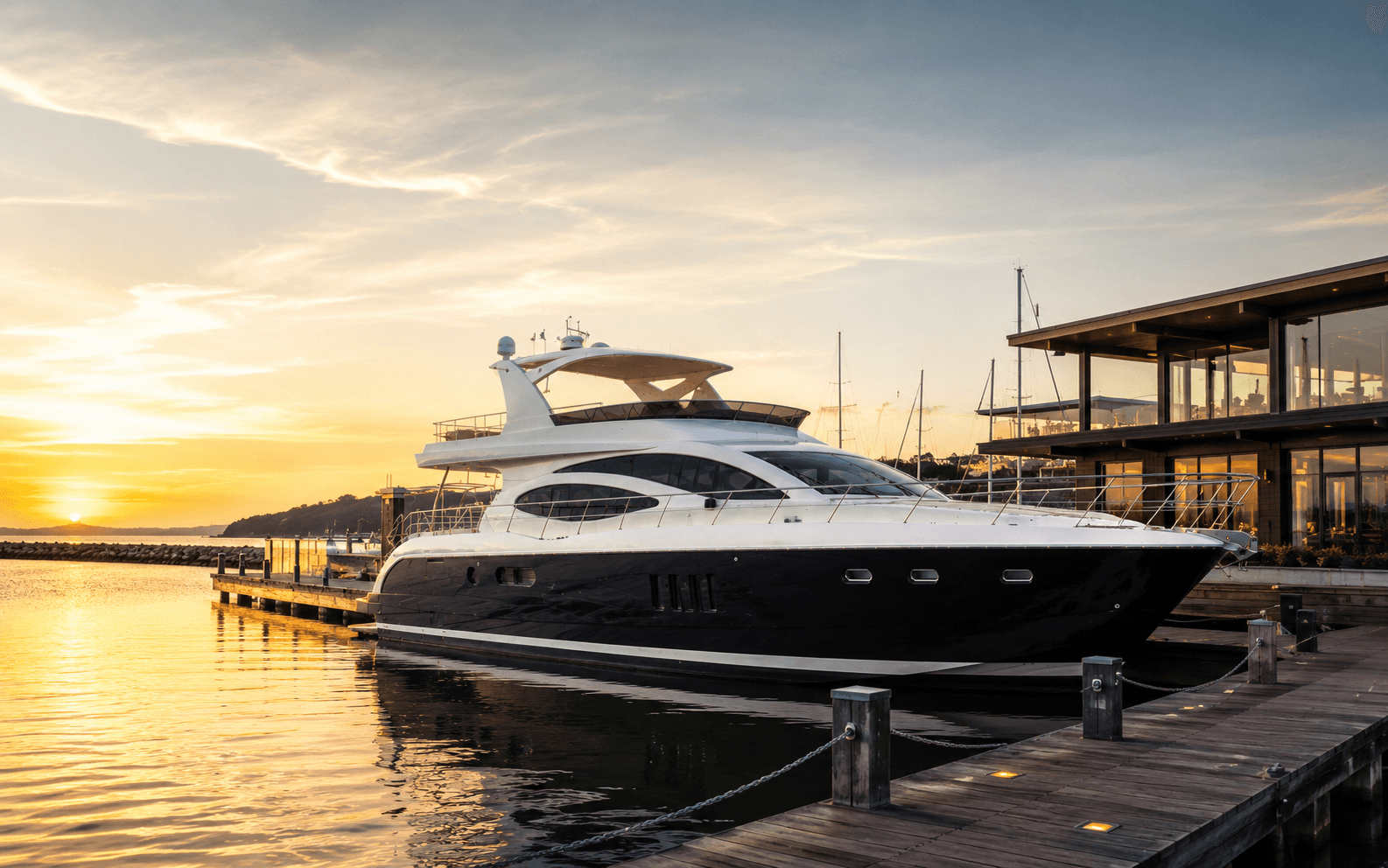

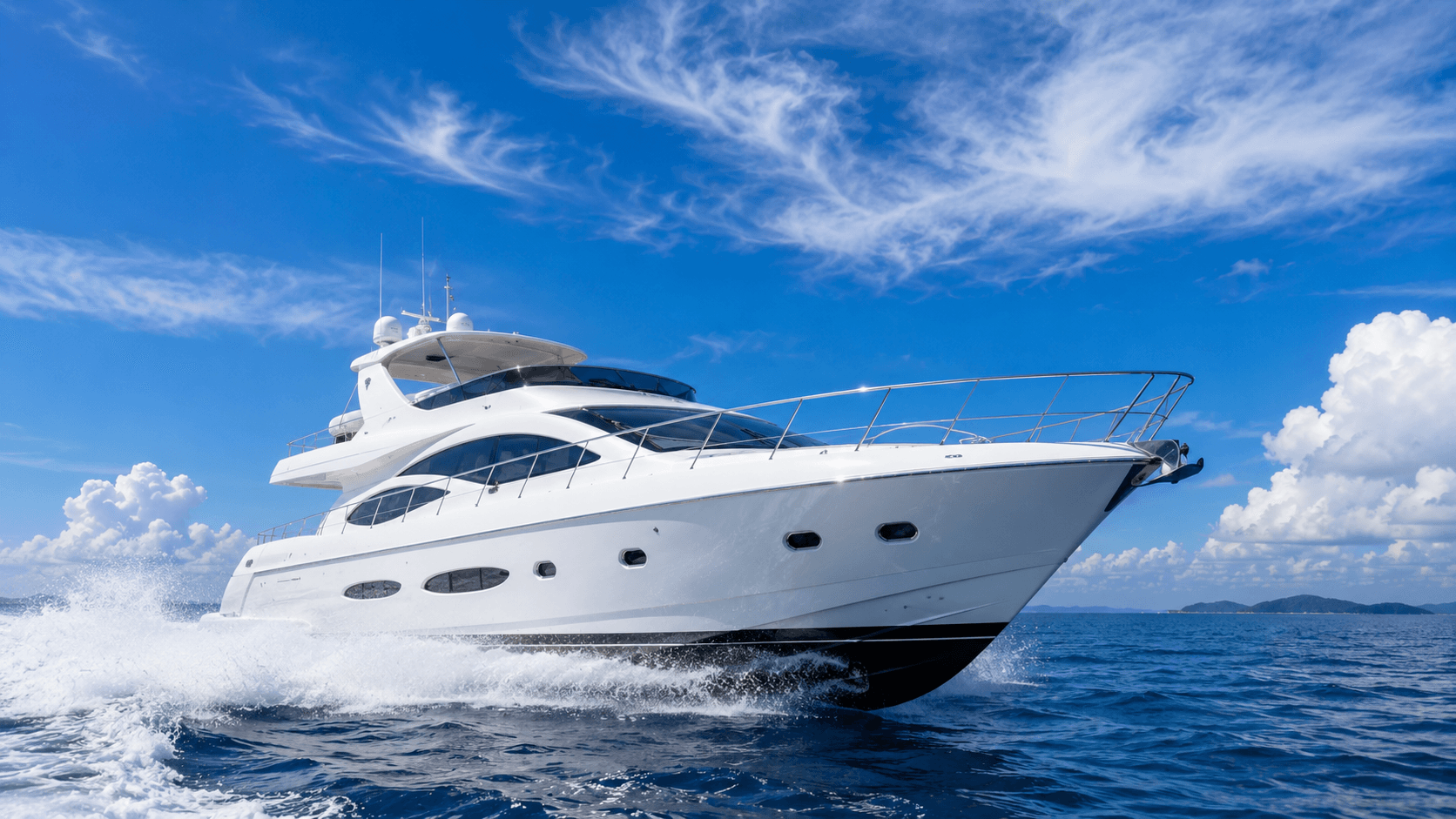

From Performance to Life at Sea
The interior distills contemporary style into a spacious, modern setting for coastal leisure, private parties and group events.
INTERIOR

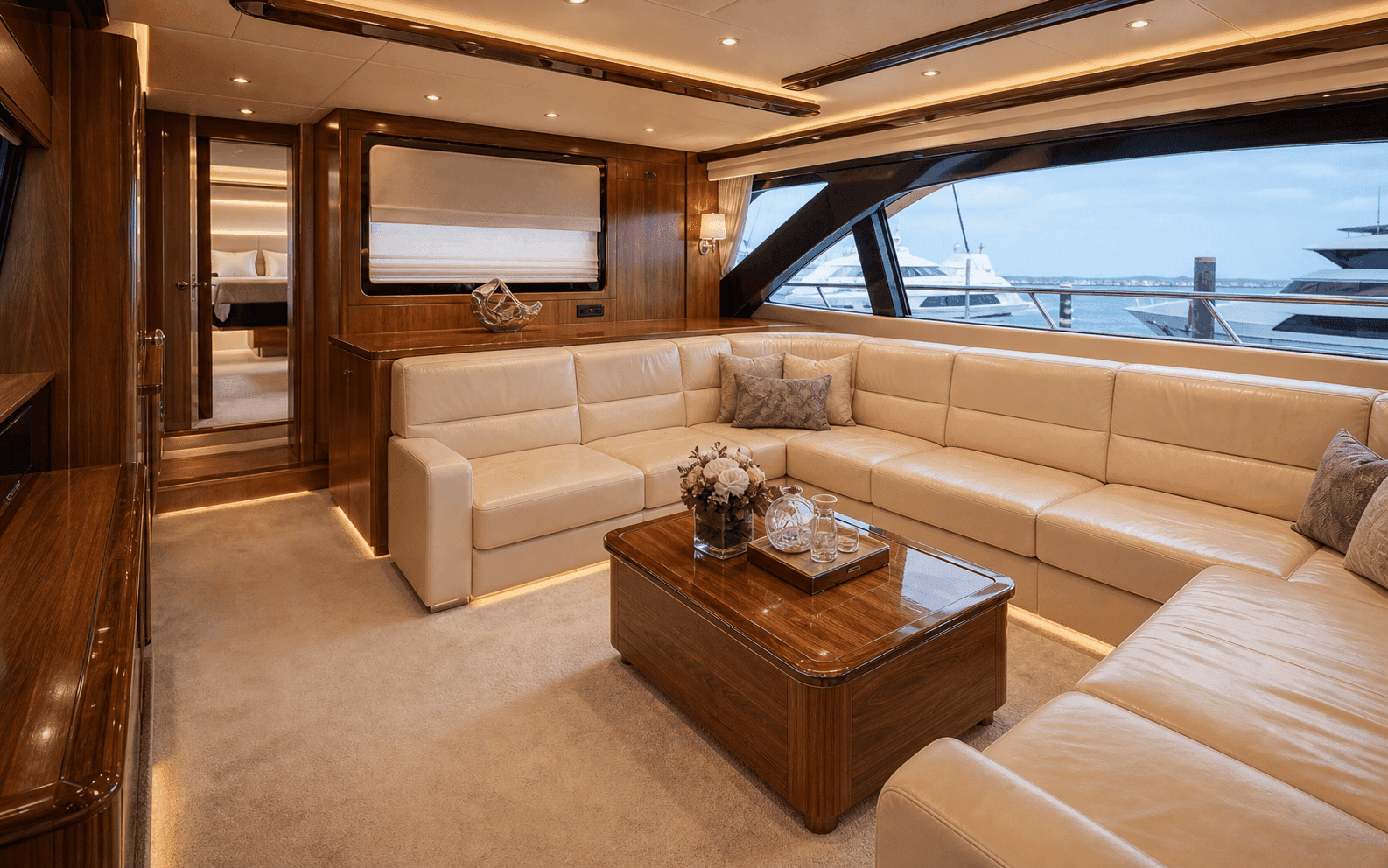

Luxury Spaces

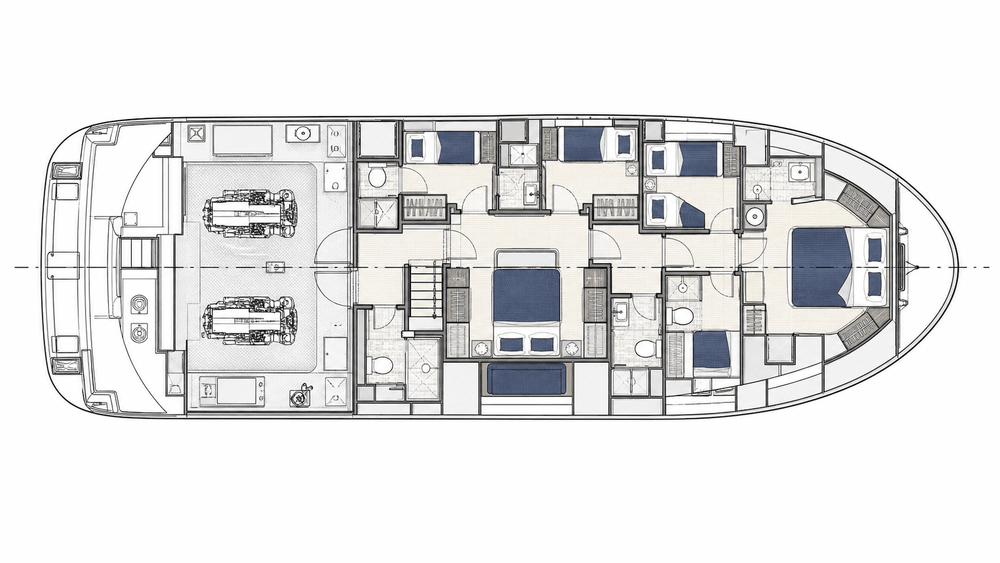

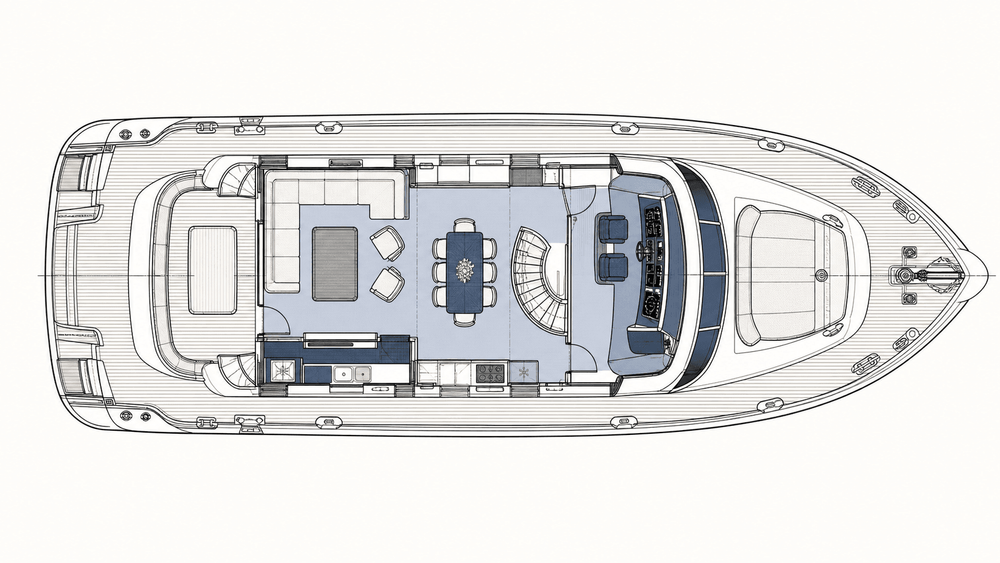

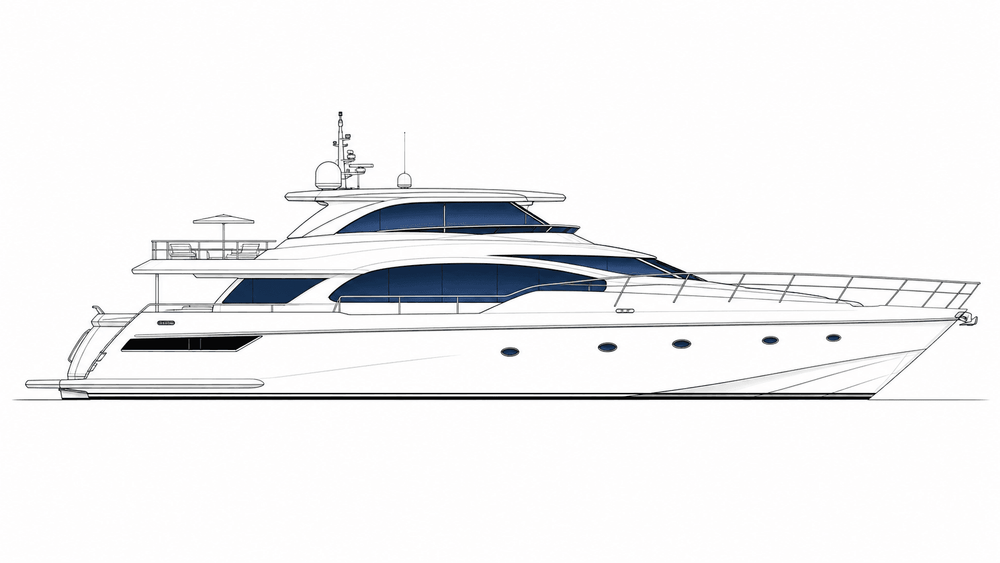

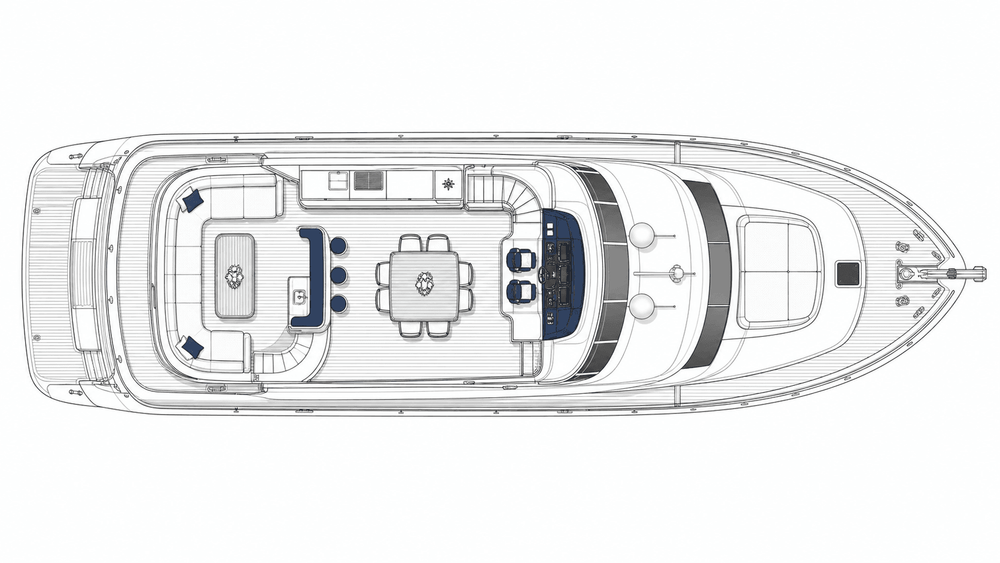

Three-Deck Layout
Core Specifications
Specifications are based on Hangyu product data and can be confirmed for each project.
Specifications
- Overall Length
- 20.12 m
- Beam
- 5.00 m
- Depth
- 1.83 m
- Draft
- 0.80 m
- Displacement
- 14.9 t
- Max. Passengers
- 12 persons
- Fuel Capacity
- 2 × 1000 L
- Fresh Water Capacity
- 380 L
- Max. Speed
- 30.0 knots
- Cruise Speed
- 22.0 knots
- Engine Model
- Cummins 480HP × 2
- Generator
- 15kW / AC230V
- Design Category
- Class II Navigation Area
SYSTEMS
Core Systems

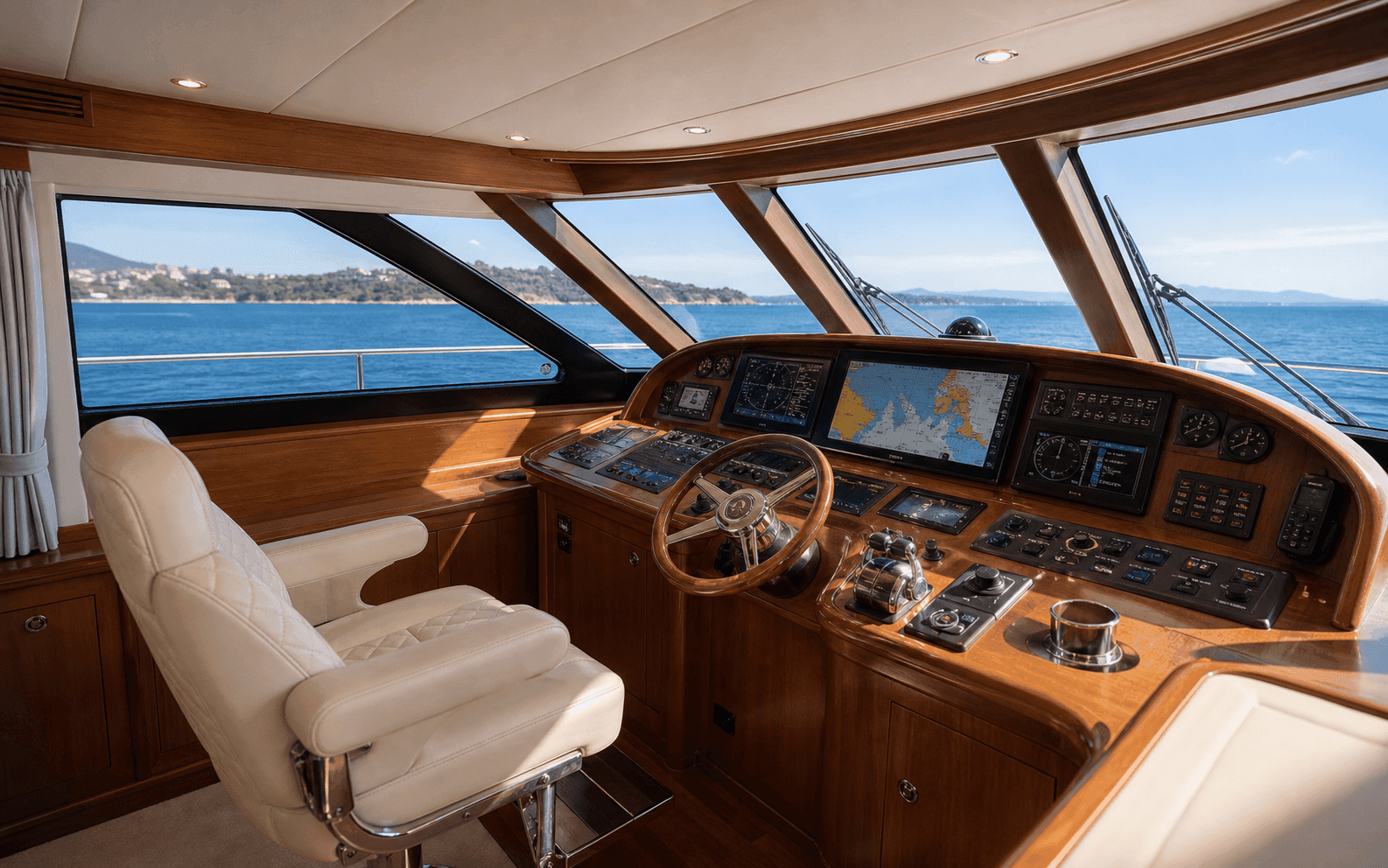

Navigation & Communications
Garmin integrated radar system
Marine VHF radio
AIS automatic identification system
Navigation lights and control panel
Twin WEM2530BF steering units
Comfort Systems
Three Mermaid water-cooled air-conditioning units
Open galley with stainless-steel refrigerator

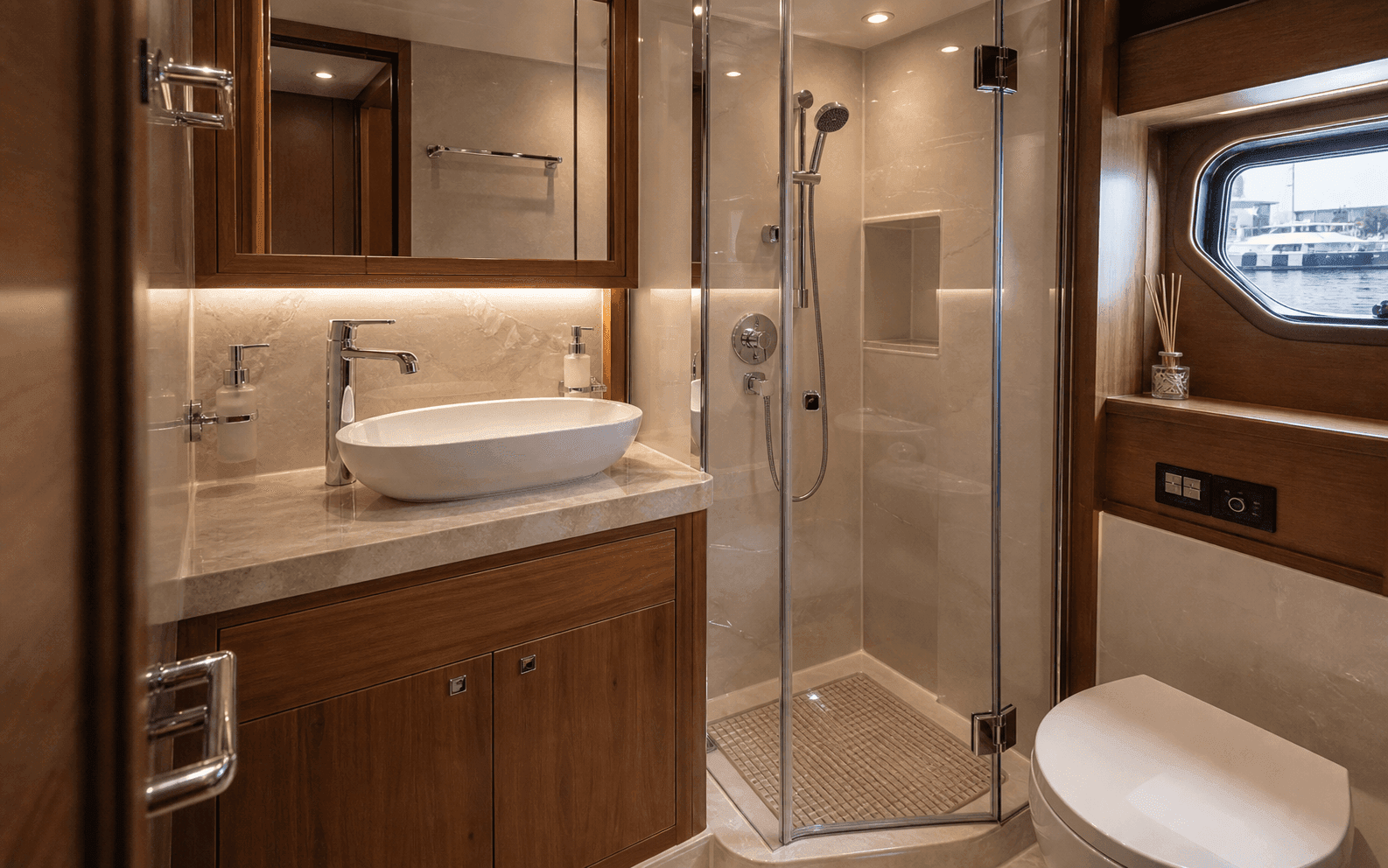

Private bathroom with electric toilet
Premium interior finishes and luxury furniture
LED lighting throughout
Safety & Firefighting
40CWZ-6 general-service fire pump
RULE-series flame-retardant system
RULE SuperSwitch bilge switch
Fixed HFC-227ea fire-suppression system in the propulsion compartment
5 kg portable dry-powder extinguishers × 2
Anchoring System
25 kg high-holding-power stainless-steel anchor
10 mm stainless-steel anchor chain
Stainless-steel windlasses × 2
16 mm mooring lines, 30 m × 2
Professional shore-mooring system
Electrical System
Engine-start battery banks: DC 24 V 200 Ah × 2
Emergency battery banks: DC 24 V 200 Ah × 2
Main distribution panel: AC 220 V / DC 24 V
Charger: AC 220 V to DC 24 V / 50 A
Shore-power socket: AC 220 V 50 A
Lighting & Appliances
Interior ceiling lights: LED 12 W × 12
Side-compartment lights: LED 3 W × 3
Interior work lights: LED 6 W × 4
135SL RC searchlight
High-quality switches and outlets
Hull & Outfitting
Strong, durable FRP hull
Streamlined exterior with reduced wind resistance
Stainless-steel ladders, rails and handrails
Glass cabin doors, windows and skylights
Premium marine coatings and refined workmanship
Related Builds
Explore vessels with similar scenarios, layouts and custom build possibilities.
Luxury Yachts

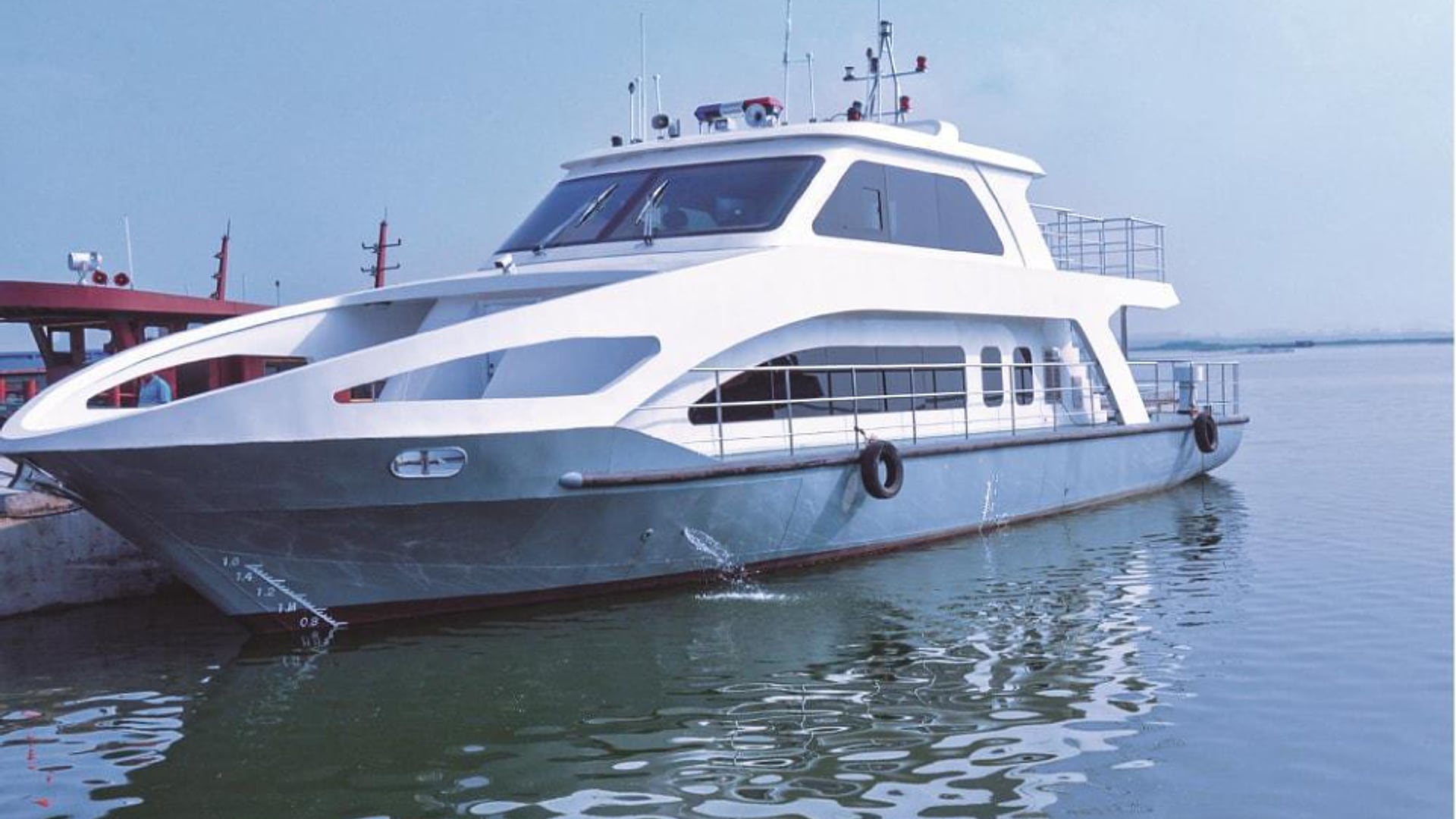

Official Reception Yacht
Designed for government and corporate hospitality, business meetings and short VIP transfers, with an emphasis on comfort and privacy.
Luxury Yachts
ALASKA 47
ALASKA 47 combines a clean white hull, blue waterline and confident proportions with practical spaces for business reception and leisure cruising.
Luxury Yachts

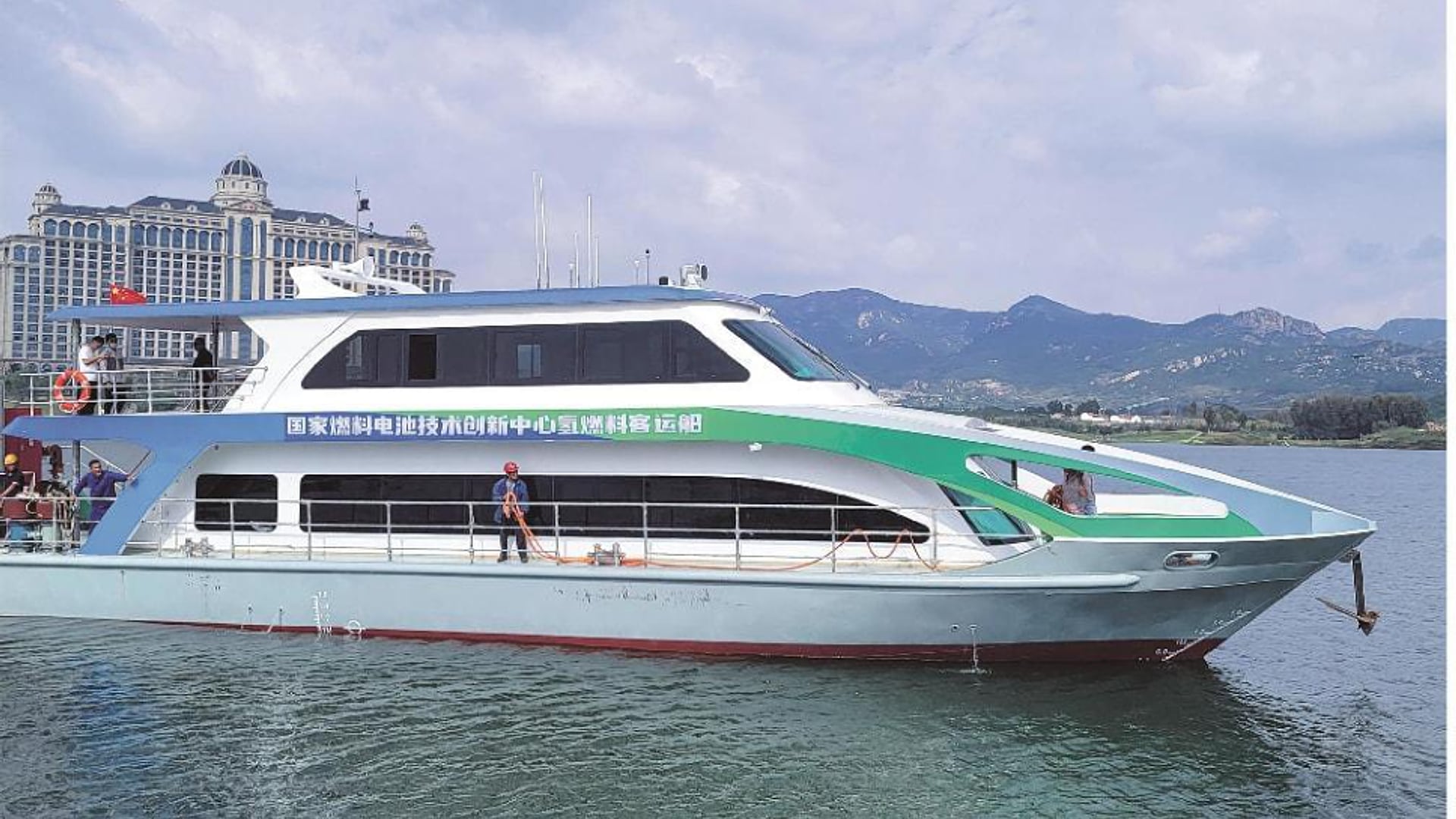

28 M Hydrogen Passenger Boat
